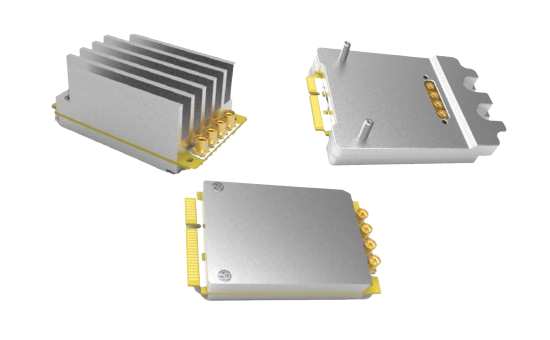

axE2-2400 Mini PCIe Wi-Fi 6 Module
The axE2-2400 Mini PCIe Wi-Fi 6 module is designed for OEM and industrial systems that need stable and reliable 2.4 GHz wireless connectivity. It fits into embedded platforms using a Mini PCIe interface and supports modern Wi-Fi standards for consistent performance in real-world deployments.
This module supports IEEE 802.11 b/g/n/ac/ax standards and is suitable for applications where dependable wireless communication is critical. It is commonly used in Mini PCIe Wi-Fi module categories and integrated into wireless product platforms for industrial and embedded use cases.
High-Performance Wi-Fi 6 Mini PCIe Module for Industrial Applications
It works well in designs explained in OEM wireless module integration guides and across multiple industrial application environments where wireless reliability is a key requirement.
Key Features
- Mini PCIe radio module supporting PCI Express 3.0
- Supports IEEE 802.11 b/g/n/ac/ax standards
- Operates in the 2.4 GHz ISM band
- Supports 2×2 MU-MIMO
- Up to 30 dBm TX power
- Operating temperature range of -40°C to +85°C
- Designed for robust and mil-grade vibration resilience
- Supports OpenWRT Linux through the ath11k wireless driver
- Available with custom heatsink and mechanical options
axE2-2400 Wi-Fi 6 Key Features
IEEE 802.11 b/g/n/ac/ax
Wifi 6 Transceiver module, complying to 802.11 bgn/ac/ax standards supporting 2T2R in 2.4 GHz ISM Band.
OpenWRT support
Works with OpenWRT Linux using the ath11k wireless driver, helping simplify embedded development.
Interference Desensitization
Low noise Receiver design integrated with top-tier OBB management provides strong resilience to out-of-band signals, maintaining robust connectivity in the most challenging environments
Best-in Class Receive Sensitivity
Low noise receiver tweaked for optimized Noise Figure offers sharp ears to the OEM systems to maintain reliable connectivity under all circumstances
TX Power of 30 dBm
Highly linear transmitter design with an ultra-high TX power of 30 dBm adhering to strict EVM level exceeding requirements of OFDM modulated signals
Low Latency and High Data Bandwidth
The module offers low latency and high Data Bandwidth, which are crucial for seamless communication and optimal performance. With theoretical maximum speeds of up to 574 Mbps with 1024 QAM modulation, it delivers exceptional performance for critical applications
BlackPepper BKP-N2N2-2450
BlackPepper BKP-N2N2-2450
- SWaP-C (Size, Weight, Power & Cost) optimized Radio Module
- High-Performance, Dual independent Radio operating in ISM 2.4 GHz license-free Band and 4.9 GHz (Public safety), UNII-B1,B2A,B2C and B3 Bands
- Conforming to IEEE 802.11 a/b/g/n Standards and 2×2 MIMO
- 29 dBm TX Power
- -40 deg C to +85 deg C Operating Temperature
- Robust and Vibration Resillience
Technical Performance Overview
The axE2-2400 Mini PCIe Wi-Fi 6 module is built to deliver consistent wireless performance in the 2.4 GHz band. With 2×2 MU-MIMO and support for modern Wi-Fi standards, it helps maintain stable throughput and low latency in real-world deployments.
It fits well into system designs that consider RF link budget planning and radio performance metrics for reliable communication.
Technical Specifications
| RADIO MODULE – GENERAL INFO | |
| Chipset | QUALCOMM QCN-9074-1 |
| EEPROM | 2-Mbit serial I²C bus EEPROM |
| Host Interface | Mini PCIe interface with PCIe 3.0 |
| Operating System | Linux, supports open source ath11K Linux driver |
| Security | AES-CCMP at 128/256 bits AES-GCMP at 128/256 bits WEP, TKIP hardware encryption WAPI-2 hardware encryption WPA/WPA2-Personal/WPA2-Enterprise and WPA3 Personal |
| Operating frequency (11b/g/n) | 2412 MHz to 2484 MHz (Operating channels) |
Data rate -11b Data rate-11g Data rate-11n Data rate-11ac Data rate-11ax | 1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps 6Mbps, 9Mbps, 12Mbps, 18 Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6, MCS7 MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6, MCS7 ,MCS8, MCS9, MCS10, MCS11 MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6, MCS7 ,MCS8, MCS9, MCS10, MCS11, MCS12, MCS13 |
| Channel BW | 5 MHz/10 MHz/20 MHz/40 MHz |
| Compliance | RoHS, MIL-STD-810G Shock & Vibration |
| MAC ID | 74E277 Series |
| INTERFACE SPECIFICATIONS | |
| Compliance | RoHS, MIL-STD-810G Shock & Vibration |
| MAC ID | 74E277 Series |
| INTERFACE SPECIFICATIONS | |
| Operating Voltage | 3.3V DC / 5V DC (through miniPCI pins 45,47,49,51 for PA) |
| Total DC Power Consumption | 7 Watts in 2×2 MIMO mode |
| RF Antenna connector | x2 MMCX Female(Jack), Straight connectors |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature Range | -40 deg C to +85 deg C |
| PHYSICAL SPECIFICATIONS | |
| Mechanical Dimension | (L) 51 mm x (W) 30 mm x (W) 21 mm |
| Weight (grams) | 45 |
| REGULATORY INFORMATION | |
| Compliance | Work in Progress |
| PACKAGING INFORMATION | |
| No of units | 100, Shipping Carton Dimension (52 cm x 23 cm x 13 cm) |
| ORDERING INFORMATION | |
| axE2-2400 | Mini PCIe Radio Module, 2×2 MU-MIMO, IEEE 802.11 b/g/n/ac/ax, 2.4 GHz 30 dBm |
| Protocol | Data rate | TX Power per chain (dBm) | DC Power Consumption (W) | RX Sensitivity (dBm) |
| 11b | 1 Mbps | 27 | 7.0 | -100 |
| 11 Mbps | 27 | 7.0 | -91 | |
| 11g | 6 Mbps | 27 | 7.0 | -96 |
| 54 Mbps | 24 | 6.1 | -78 | |
| 11n-HT20 | MCS0 | 27 | 7.0 | -94 |
| MCS7 | 24 | 6.1 | -74 | |
| 11n-HT40 | MCS0 | 27 | 7.0 | -91 |
| MCS7 | 23 | 5.9 | -71 | |
| 11ac-VHT20 | MCS0 | 27 | 7.0 | -96 |
| MCS11 | 22 | 5.8 | -67 | |
| 11ac-VHT40 | MCS0 | 27 | 7.0 | -93 |
| MCS11 | 21 | 5.7 | -74 | |
| 11ax-HE20 | MCS0 | 27 | 7.0 | -94 |
| MCS13 | 20 | 5.5 | -60 | |
| 11ax-HE40 | MCS0 | 27 | 7.0 | -91 |
| MCS13 | 20 | 5.5 | -57 |
| Parameter | Specification |
| RF Power control Step | 0.5 dBm |
| Spectral Mask Compliance | Compliant with IEEE 802.11b/g/n/ac/ax Mask, with > 5 dB margin |
| EVM Compliance | Compliant with IEEE 802.11b/g/n/ac/ax EVM requirement with > 5 dB margin |
| Second Harmonic Spurious Emission | -30 dBC |
| Third Harmonic Spurious Emission | -40 dBC |
| Transmitter Spurious Emission | FCC PART 15C COMPLIANT |
| Parameter | Specification |
Receiver Maximum input level (10% PER) 11b, 11g < 18 Mbps, 11n/11ac/11ax < MCS5 11b, 11g > 18 Mbps, 11n/11ac/11ax > MCS5 |
> 2 dBm > -10 dBm |
| Frequency Accuracy | Within ± 10 PPM |
Receiver Adjacent Channel Rejection (ACR) 11g, 6 Mbps 11ac,11ax, HE40-MCS0 11ax, HE40-MCS11 |
> 25 dBC > 30 dBC > 11 dBC |
Interference De-sensitization 11ax, HE20-MCS13 400 MHz to 2350 MHz 4800 MHz to 5825 MHz |
> 50 dBC > 60 dBC |
