What Is an RF Link Planner?
An RF link planner is a wireless network planning tool used to evaluate whether a radio communication link is technically feasible before deployment. It combines transmitter characteristics, antenna performance, propagation losses and receiver requirements to estimate the signal level expected at the receiving end of the link.
Engineers can use RF planning to compare different frequencies, antenna configurations, transmit-power levels and link distances before selecting equipment or deploying infrastructure. This helps identify weak link margins early and reduces unnecessary field troubleshooting.
What Can the RF Link Planner Help Evaluate?
- RF link budget and overall link feasibility
- Expected received signal strength
- Free-space and propagation-related path loss
- Transmit power and receiver sensitivity
- Transmit and receive antenna gains
- Cable and other system losses
- Available fade or link margin
- Potential communication range
- Alternative antenna or RF design configurations
These calculations allow engineers to compare design alternatives before committing to hardware selection, antenna installation or field deployment.
How to Use the RF Link Planner
Use the Vizmonet RF Link Planner to evaluate a proposed wireless link by entering the key RF parameters for the transmitter, receiver and communication path. The planner helps estimate whether the expected received signal level provides sufficient margin for reliable operation.
1. Define the Wireless Link
Start by defining the communication path between the transmitter and receiver. Link distance is one of the primary factors influencing propagation loss and overall RF performance.
2. Enter the Operating Frequency
Specify the operating frequency of the wireless system. Frequency influences free-space path loss, antenna characteristics and the propagation behaviour of the radio link.
3. Add Transmit Power and Antenna Gain
Enter the transmitter output power together with the transmit and receive antenna gains. These parameters influence how much effective RF energy is transmitted toward the receiver and how effectively the receiving antenna captures the signal.
4. Account for System Losses
Include applicable losses such as RF cable loss, connector loss and other system losses. Ignoring these factors can result in an overly optimistic link-budget estimate.
5. Review the Estimated Received Signal
Review the calculated received signal level and compare it with the receiver sensitivity of the selected radio. A received signal comfortably above the required sensitivity threshold generally provides greater tolerance to changing link conditions.
6. Evaluate Link Margin Before Deployment
Evaluate the available link or fade margin before finalizing the design. Additional margin can help accommodate environmental changes, installation losses, interference and other real-world factors that may affect wireless performance.
Engineering Note: RF planning calculations are predictive. Actual performance can also be affected by terrain, obstacles, Fresnel-zone clearance, interference, antenna installation and local RF conditions. Validate critical wireless links through appropriate field testing before deployment.
RF Link Budget Example
The following simplified example shows how an RF link budget can be used to estimate received signal strength and available link margin for a point-to-point wireless connection.
| Parameter | Example Value |
|---|---|
| Operating Frequency | 5 GHz |
| Link Distance | 5 km |
| Transmit Power | 27 dBm |
| Transmit Antenna Gain | 18 dBi |
| Receive Antenna Gain | 18 dBi |
| Combined System Losses | 2 dB |
| Free-Space Path Loss | Approximately 120.4 dB |
| Estimated Received Signal | Approximately -59.4 dBm |
| Example Receiver Sensitivity | -82 dBm |
| Estimated Link Margin | Approximately 22.6 dB |

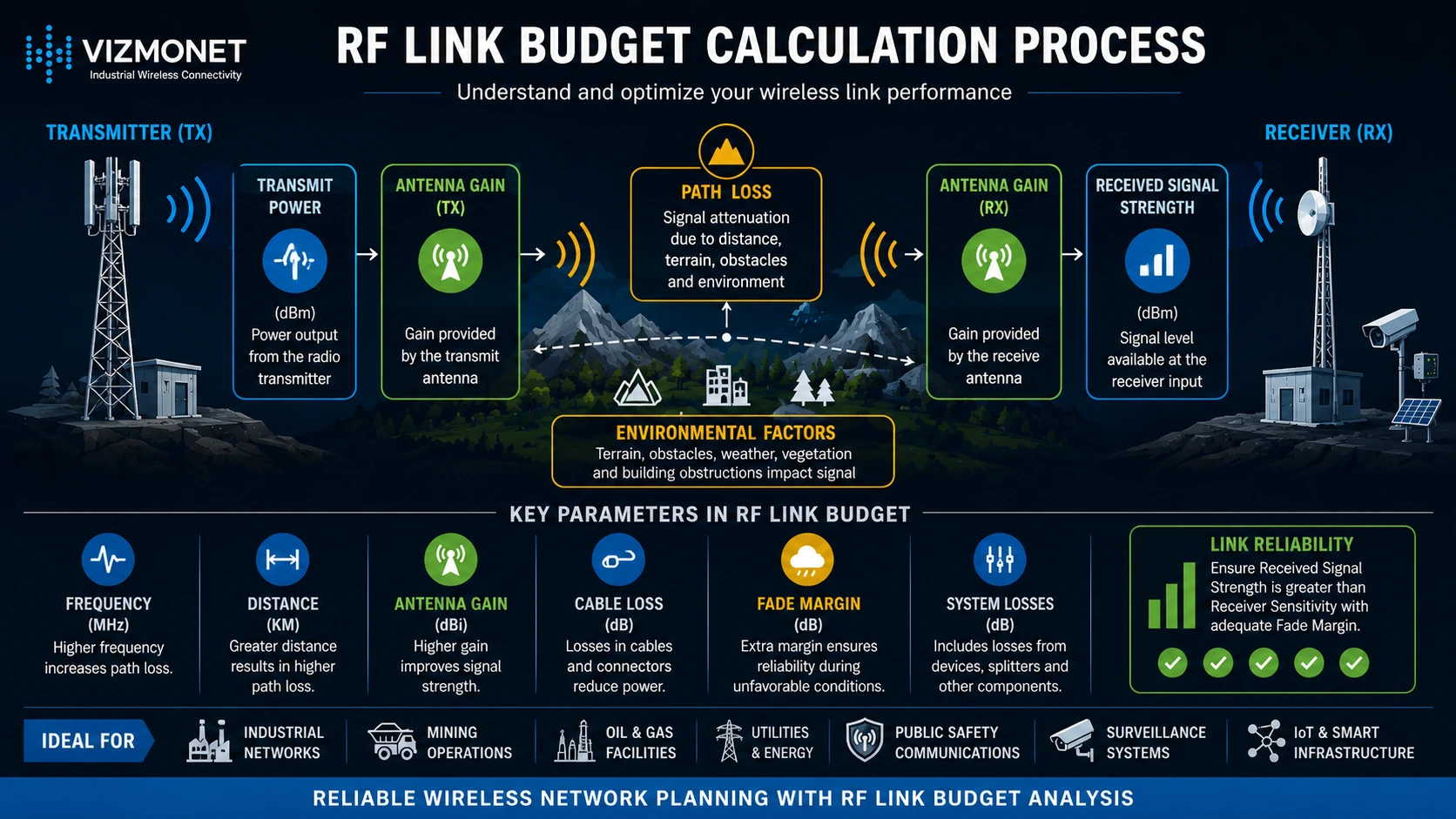

How the Received Signal Is Estimated
Received Power = Transmit Power + TX Antenna Gain + RX Antenna Gain − Path Loss − System Losses
27 dBm + 18 dBi + 18 dBi − 120.4 dB − 2 dB = approximately -59.4 dBm
Evaluating the Link Margin
If the receiver sensitivity for the required operating mode is -82 dBm, the estimated received signal of -59.4 dBm provides approximately 22.6 dB of link margin. This additional margin provides tolerance for losses and changing conditions that may occur in a real deployment.
This is a simplified example. Real wireless links can also be affected by Fresnel-zone obstruction, terrain, interference, vegetation, multipath, antenna alignment and environmental conditions.
Want to understand the calculation in more detail? Read the RF Link Budget Calculation Guide →
Key Parameters That Affect RF Link Performance
Reliable RF link planning requires more than distance alone. Transmit power, operating frequency, antenna characteristics, propagation losses and receiver performance all influence whether a wireless link can maintain sufficient signal strength and link margin.
Transmit Power
Transmit power represents the RF output generated by the radio transmitter, usually expressed in dBm. Higher transmit power can increase the available link budget, but regulatory limits, power consumption, thermal design and hardware capabilities must also be considered.
Operating Frequency
Operating frequency affects propagation characteristics and free-space path loss. Lower frequencies generally experience lower free-space path loss over the same distance, while higher-frequency links may require greater attention to antenna alignment, obstruction clearance and deployment conditions.
Antenna Gain
Antenna gain describes how effectively an antenna concentrates RF energy in a particular direction. Higher-gain directional antennas can improve point-to-point link performance, but antenna pattern, polarization, installation height and alignment must be appropriate for the deployment.
Free-Space Path Loss
Free-space path loss is the reduction in signal strength that occurs as RF energy spreads over distance. It increases with both link distance and operating frequency and is a fundamental component of RF link budget calculations.
Receiver Sensitivity
Receiver sensitivity defines the minimum signal level required by a radio receiver to achieve a specified level of performance. The required sensitivity can vary depending on modulation, channel bandwidth and target data rate.
Cable and Connector Losses
RF cables, connectors and other components introduce insertion losses between the radio and antenna. These losses reduce the effective transmitted or received signal and should be included in the link budget.
Fade Margin and Link Margin
Link margin is the difference between the expected received signal level and the receiver sensitivity required for the intended operating mode. Additional margin provides tolerance for environmental changes, interference, installation losses and other variations.
Fresnel-Zone Clearance and Obstructions
A visually clear line of sight does not always guarantee an unobstructed RF path. Buildings, terrain, vegetation and other objects entering the Fresnel zone can introduce additional diffraction and propagation losses.
Planning Tip: Antenna selection can significantly influence real-world wireless performance. See our Industrial Wireless Antenna Selection Guide →
Where RF Link Planning Is Used
RF link planning is used across industrial, mission-critical and outdoor wireless deployments where engineers need to evaluate coverage, path loss, antenna performance and available link margin before installing communication infrastructure.
Industrial Wireless Networks
Industrial sites use RF planning to evaluate wireless links between control systems, gateways, remote equipment, sensors and network infrastructure. Proper planning can help improve coverage and reduce unexpected connectivity problems across complex environments.
Wireless Backhaul and Point-to-Point Links
Point-to-point and wireless backhaul links often operate across longer distances and depend on sufficient link margin, antenna gain and path clearance. Learn more about wireless backhaul networks.
Mining Connectivity
Mining operations may require wireless communication across large outdoor areas, moving equipment and changing terrain. Explore Vizmonet mining wireless applications.
Oil and Gas Communication Networks
Remote oil and gas facilities often depend on wireless links for monitoring, control, telemetry and communication between distributed assets. View Vizmonet oil and gas wireless applications.
Public Safety Communications
Public safety communication systems require dependable wireless coverage and resilient network design. See Vizmonet public safety wireless applications.
UAV Communication Systems
Unmanned aerial systems depend on reliable wireless communication for command and control, telemetry, sensor data and video transmission. Explore Vizmonet UAV wireless applications.
UGV and Autonomous Ground Systems
Autonomous ground vehicles and robotic platforms require wireless links that remain reliable while operating across changing locations and terrain. Explore Vizmonet UGV wireless applications.
What an RF Link Planner Can and Cannot Predict
An RF link planner helps engineers estimate whether a proposed wireless connection is technically feasible before deployment. However, planning results are predictive and should be interpreted together with real-world environmental, installation and RF conditions.
What an RF Link Planner Can Estimate
- Expected RF link budget
- Estimated received signal strength
- Free-space and propagation-related path loss
- Impact of transmit power and antenna gain
- Effect of cable and system losses
- Available link or fade margin
- Potential communication range
- Relative performance of alternative RF configurations
What RF Planning Calculations Cannot Fully Predict
- Local RF interference and changing noise levels
- Buildings, terrain, vegetation and temporary obstructions
- Multipath reflections and signal fading
- Antenna alignment and installation quality
- Connector, cable and hardware variations
- Moving vehicles, machinery or dynamic objects
- Weather and environmental conditions
- Changes in operating conditions
Why Field Validation Still Matters
RF link planning should be used as an engineering decision-support tool rather than as a substitute for field validation. For critical or mission-sensitive deployments, engineers should verify antenna placement, interference levels, actual received signal performance and environmental conditions at the deployment site.
Engineering Guidance: Use the RF Link Planner to compare design options and identify potential weaknesses early. For production deployments, combine calculated results with appropriate site surveys, RF measurements and field testing where required.
