DATASHEET ES-P-N2N1-5009
ES-P-N2N1-5009
Wi-Fi 4

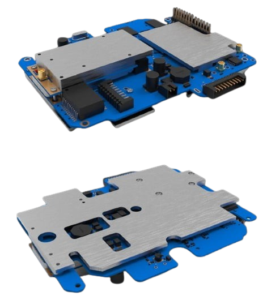

- Wireless Network system packaged in PCB assembly for easy OEM integration
- High-Performance, Dual independent Radio operating in 4.9 GHz Public safety, UNII-B1,B2A,B2C and B3 Bands (2×2 MIMO) and Sub GHz 902 MHz to 928 MHz Band (1×1 SISO)
- Conforming to IEEE 802.11 a/b/g/n Standards
- 29 dBm TX Power
- -40 deg C to +85 deg C Operating Temperature
- Robust and mil grade Vibration Resilience
Frequency Diversity
Simultaneous operation of 4.9 GHz (public safety), UNII-B1,B2A,B2C,B3, Sub GHz 900 MHz ISM Bands, Software configurable
OpenWRT support
OpenWRT Linux supported by ath9K wireless driver
Interference Desensitization
Low noise Receiver design integrated with top-tier OBB management provides strong resilience to out-of-band signals, maintaining robust connectivity in the most challenging environments
IEEE 802.11 a/b/g/n
Wifi 4 Transceiver module, complying to 802.11 abgn standards supporting 2T2R MIMO (5 GHz) and 1T1R SISO (900 MHz)
TX Power of 29 dBm
Highly linear transmitter design with an ultra-high TX power of 29 dBm adhering to strict EVM level exceeding requirements OFDM modulated signals
Low Latency and High Data Bandwidth
Simultaneous operation across multiple frequency Bands not only offer frequency diversity but also offer high data bandwidth and low latency. With theoretical maximum speeds of up to 370 Mbps, it delivers exceptional performance for critical applications
BlackPepper BKP-N2N2-2450
BlackPepper BKP-N2N2-2450
- SWaP-C (Size, Weight, Power & Cost) optimized Radio Module
- High-Performance, Dual independent Radio operating in ISM 2.4 GHz license-free Band and 4.9 GHz (Public safety), UNII-B1,B2A,B2C and B3 Bands
- Conforming to IEEE 802.11 a/b/g/n Standards and 2×2 MIMO
- 29 dBm TX Power
- -40 deg C to +85 deg C Operating Temperature
- Robust and Vibration Resillience
|
On-board Radio (11a/n) chipset MiniPCie Radio (11b/g/n) chipset |
QCA 9550-AT4B (CPU) & AR 8033-AL1B (Ethernet PHY) AR 9592-AR1B |
| NOR Flash NAND Flash RAM |
SPI Flash, 16MB NAND Flash, 256 MB DDR2, 200 MHz, 256 MB (64Mx16x2) |
|
Operating frequency – on-board Radio Operating frequency – MiniPCIe Radio |
4920 MHz to 5825 MHz (Operating Channels) 902 MHz to 928 MHz (Operating frequency range) |
|
Data rate-11n HT20/HT40-1S (SISO)
Data rate-11n HT20/HT40-2S (MIMO) |
6Mbps, 9Mbps, 12Mbps, 24Mbps, 36Mbps, 48Mbps,54Mbps (11a) MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6, MCS7 (11n) MCS8, MCS9, MCS10, MCS11, MCS12, MCS13, MCS14, MCS15 (11n) |
|
Channel BW – On-board Radio (11a/n) Channel BW – MiniPCie Radio (11b/g/n) |
5 MHz/10 MHz/20 MHz /40 MHz 5 MHz/10 MHz/20 MHz |
| RoHS Compliance | Compliant |
| INTERFACE SPECIFICATIONS | |
| Power in |
Power Over Ethernet |
| Operating Voltage | 9V to 30V, 14W max |
| RF Antenna connector | x3 MMCX male connectors |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature Range | -40 deg C to +85 deg C |
| PHYSICAL SPECIFICATIONS | |
| Mechanical Dimension | (L) 111.5 mm x (W) 98.55 mm |
| Weight | TBD |
| REGULATORY INFORMATION | |
| Compliance | TBD |
| PACKAGING INFORMATION | |
| No of units | TBD |
| ORDERING INFORMATION | |
| ES-P-N2N1-5009 |
OEM PCB Assembly Kit, ES-P-N2N1-5009, HW Rev 03.00 SBC, 5 GHz, MIMO, HW Rev 2001.0300 MiniPCIe, 900 MHz, SISO, HW Rev 2005.0300 |
| Frequency (MHz) | Data rate | TX Power per chain (dBm) | Current 24V (A) | RX Sensitivity (dBm) |
| 4920 TO 4990 | 6 Mbps | 24 | 0.37 | -94 |
| MCS0-HT20 | 26 | 0.40 | -92 | |
| MCS0-HT40 | 26 | 0.40 | -89 | |
| 5180 TO 5320 | 6 Mbps | 25 | 0.38 | -94 |
| MCS0-HT20 | 26 | 0.40 | -92 | |
| MCS0-HT40 | 26 | 0.40 | -89 | |
| 5550 TO 5720 | 6 Mbps | 25 | 0.38 | -94 |
| MCS0-HT20 | 26 | 0.40 | -92 | |
| MCS0-HT40 | 26 | 0.40 | -89 | |
| 5745 TO 5825 | 6 Mbps | 25 | 0.38 | -94 |
| MCS0-HT20 | 26 | 0.40 | -92 | |
| MCS0-HT40 | 26 | 0.40 | -89 | |
| 902 TO 928 | 1 Mbps | 29 | 0.180 | -93 |
| 6 Mbps | 26 | 0.120 | -91 | |
| MCS0-HT20 | 29 | 0.180 | -88 |
