Wi-Fi 6 Embedded Wireless Module (BlackPepper 6 BKP6-AX2AX2-2450) – Industrial Dual Band Radio
BlackPepper 6 BKP6-AX2AX2-2450
The BlackPepper 6 BKP6-AX2AX2-2450 is a high-performance Wi-Fi 6 wireless module designed for industrial and OEM applications requiring reliable, long-range connectivity. Built on advanced IEEE 802.11 standards, this module supports Dual Independent Wi-Fi band operation (2.4 GHz and 5 GHz) along with public safety frequencies, making it ideal for mission-critical deployments. With optimized RF performance, high transmit power, and robust interference handling, it ensures stable communication in challenging environments.
Product Overview
- High-performance Wi-Fi 6 module for industrial use
- Supports IEEE 802.11 a/b/g/n/ac/ax standards
- Dual independent wireless module architecture (2×2 MU-MIMO)
- Multi-band support: 2.4 GHz Wi-Fi, 4.9 GHz, 5 GHz
- Up to 30 dBm transmit power for extended Wi-Fi range
- Designed for embedded systems and OEM integration
Key Features for BlackPepper 6 BKP6-AX2AX2-2450
Wi-Fi 6 & IEEE 802.11 Compatibility
Supports full IEEE 802.11 a/b/g/n/ac/ax standards, ensuring compatibility with modern high-speed wireless networks.
Learn more about IEEE 802.11ax.
OpenWRT Wireless Module Support
Supports OpenWRT with ath11k driver, allowing customization and control for embedded wireless systems.
Explore OpenWRT.
Advanced Interference Handling
Optimized RF design minimizes interference, improving signal stability in dense wireless environments.
Learn how performance is measured in
radio performance metrics.
Best-in Class Receive Sensitivity
Low noise receiver tweaked for optimized Noise Figure offers sharp ears to the OEM systems to maintain reliable connectivity under all circumstances
TX Power of 30 dBm
Highly linear transmitter design with an ultra-high TX power of 30 dBm adhering to strict EVM level exceeding requirements of OFDM modulated signals
Low Latency and High Data Bandwidth
The module offers low latency and high Data Bandwidth, which are crucial for seamless communication and optimal performance. With theoretical maximum speeds of up to 1.2 Gbps with 1024 QAM modulation, it delivers exceptional performance for critical applications

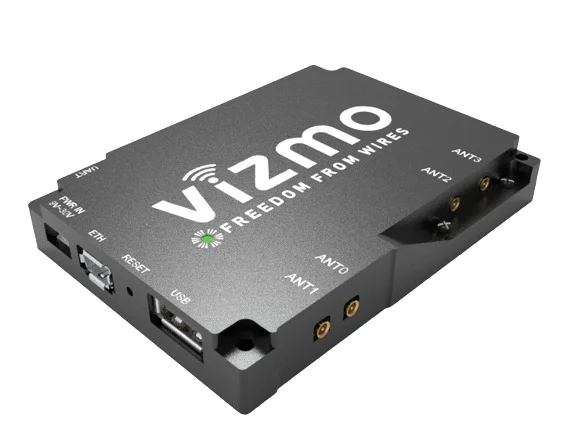

BlackPepper BKP-N2N2-2450
- SWaP-C (Size, Weight, Power & Cost) optimized Radio Module
- High-Performance, Dual independent Radio operating in ISM 2.4 GHz license-free Band and 4.9 GHz (Public safety), UNII-B1,B2A,B2C and B3 Bands
- Conforming to IEEE 802.11 a/b/g/n Standards and 2×2 MIMO
- 29 dBm TX Power
- -40 deg C to +85 deg C Operating Temperature
- Robust and Vibration Resillience
Technical Performance
This Wi-Fi 6 wireless module is engineered to deliver superior performance across industrial environments.
With support for dual Wi-Fi band operation, high transmit power, and advanced modulation techniques, it ensures:
- Stable connectivity
- High data throughput
- Extended wireless range
- Low latency communication
It is ideal for applications requiring reliable wireless networking, embedded systems integration, and high-speed data transmission.
For compliance requirements, see regulatory compliance and homologation.
| Radio chipset | Qualcomm IPQ 6028 – Quad Arm Cortex A53 at 1.8 GHz (CPU) QCA 8081 (Ethernet PHY) |
| NOR Flash NAND Flash RAM | SPI NOR Flash, 32MB NAND Flash, 256 MB DDR3L, 1 GB |
| Operating System | Linux, OPENWRT, supports open source ath11K Linux driver |
| Security | AES 128, 256, SHA 1-96, 128, 256, 512, CCM and GCM operation FIPS level 2 certification |
Operating frequency – 11 b/g/n/ac/ax Operating frequency – 11 a/n/ac/ax | 2400 MHz to 2483.5 MHz (2S, MU- MIMO) 4900 MHz to 5850 MHz (2S, MU-MIMO) |
Data rate -11b Data rate -11g Data rate -11n Data rate -11ac Data rate -11ax | 1 Mbps, 2 Mbps, 5.5 Mbps, 11 Mbps 6Mbps, 9Mbps, 12Mbps, 18 Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6, MCS7 MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6, MCS7 ,MCS8, MCS9, MCS10, MCS11 MCS0, MCS1, MCS2, MCS3, MCS4, MCS5, MCS6, MCS7 ,MCS8, MCS9, MCS10, MCS11 |
| Channel BW – 2.4 GHz, 4.9 GHz Channel BW – 5 GHz | 5 MHz/10 MHz/20 MHz /40 MHz 5 MHz/10 MHz/20 MHz / 40 MHz / 80 MHz |
| Compliance | RoHS, MIL-STD-810H Shock & Vibration |
| MAC ID | 74E277 Series |
| INTERFACE SPECIFICATIONS | |
| Power , Operating Voltage | DC in, 9V to 30V |
| Total DC Power Consumption | 21W (Excluding USB Add-on) |
| RF Antenna connector | x4 SMA Female (Jack) connectors |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature Range | -40 deg C to +85 deg C |
| PHYSICAL SPECIFICATIONS | |
| Mechanical Dimension | (L) 90 mm x (W) 50 mm x (D) 11.4 mm (excluding SMA connectors) |
| Weight | 100 g |
| REGULATORY INFORMATION | |
| Compliance | In Progress |
| PACKAGING INFORMATION | |
| No of units | TBD |
| ORDERING INFORMATION | |
| BKP6-AX2AX2-2450 | BlackPepper 6, Dual Independent, 2X2 MU-MIMO IEEE 802.11 a/b/g/n/ac/ax, 2.4 GHz, 5 GHz Bands, 30 dBm |
| Frequency (MHz) | Data rate | TX Power per chain (dBm) | Current 24V (A) | RX Sensitivity (dBm) |
| 2412 TO 2462 | 1 Mbps | 27 | 11.5 | -100 |
| 6 Mbps | 27 | 11.5 | -96 | |
| MCS0-HT20 | 27 | 11.5 | -93 | |
| MCS0-HT40 | 27 | 11.5 | -90 | |
| MCS0-VHT20 | 27 | 11.5 | -96 | |
| MCS0-VHT40 | 27 | 11.5 | -93 | |
| MCS0-HE20 | 27 | 11.5 | -94 | |
| MCS0-HE40 | 27 | 11.5 | -91 | |
4920 TO 5500 | 6 Mbps | 27 | 11.5 | -94 |
| MCS0-HT20 | 27 | 11.5 | -92 | |
| MCS0-HT40 | 27 | 11.5 | -89 | |
| MCS0-VHT20 | 27 | 11.5 | -95 | |
| MCS0-VHT40 | 27 | 11.5 | -92 | |
| MCS0-VHT80 | 27 | 11.5 | -89 | |
| MCS0-HE20 | 27 | 11.5 | -93 | |
| MCS0-HE40 | 27 | 11.5 | -90 | |
| MCS0-HE80 | 27 | 11.5 | -87 | |
| 5500 TO 5700 | 6 Mbps | 27 | 11.5 | -94 |
| MCS0-HT20 | 27 | 11.5 | -92 | |
| MCS0-HT40 | 27 | 11.5 | -89 | |
| MCS0-VHT20 | 27 | 11.5 | -95 | |
| MCS0-VHT40 | 27 | 11.5 | -92 | |
| MCS0-VHT80 | 27 | 11.5 | -89 | |
| MCS0-HE20 | 27 | 11.5 | -93 | |
| MCS0-HE40 | 27 | 11.5 | -90 | |
| MCS0-HE80 | 27 | 11.5 | -87 | |
| 5700 TO 5860 | 6 Mbps | 27 | 11.5 | -94 |
| MCS0-HT20 | 27 | 11.5 | -92 | |
| MCS0-HT40 | 27 | 11.5 | -89 | |
| MCS0-VHT20 | 27 | 11.5 | -95 | |
| MCS0-VHT40 | 27 | 11.5 | -92 | |
| MCS0-VHT80 | 27 | 11.5 | -89 | |
| MCS0-HE20 | 27 | 11.5 | -93 | |
| MCS0-HE40 | 27 | 11.5 | -90 | |
| MCS0-HE80 | 27 | 11.5 | -87 |
| REF | PART |
| 1,2 | SMA Connector, 4.9/5 GHz (Ant1,Ant2) |
| 3,4 | SMA Connector, 2.4 GHz (Ant1,Ant2) |
| 5 | Power Connector, JST SM04B-GHS-TB |
| 6 | Ethernet Connector, HIROSE IX60G-A-10P |
| 7 | USB Type-A Connector for USB 2.0 |
| 8 | RGB LED |
| 9 | USB Micro-B Connector for UART |
| 10 | JST SM08B-GHS-TB for EJTAG (On bottom side) |
| 11 | USB, Type-C Connector for USB 3.0 |
| 12 | SD Card Connector |
Frequently Asked Questions
What is a Wi-Fi 6 module?
A Wi-Fi 6 module is a wireless communication device based on IEEE 802.11ax, offering higher speed, better efficiency, and improved performance in dense environments.
What frequency bands does this wireless module support?
It supports 2.4 GHz Wi-Fi, 4.9 GHz, and 5 GHz bands, enabling dual band and multi-band operation.
What is the advantage of Dual Independent band Wi-Fi?
Dual Independent Radio allows BlackPepper 6 to communicate to devices that operate on both 2.4 GHz and 5 GHz bands simulatneously improving speed, reducing interference, and enhancing overall network performance.
Is this suitable for industrial applications
Yes, this Wi-Fi module is designed for industrial environments with extended temperature range and vibration resistance.You can also review wireless module supplier checklist.
What is the maximum Wi-Fi speed supported?
It supports speeds up to 1.2 Gbps using Wi-Fi 6 (802.11ax) technology.
